Home > Products > Flexible LED Strip > 5630 flexible led strip > High power 5630 smd flexible led strip light 16.4ft(5m) TB10-60W56
Flexible LED Strip-5630 flexible led strip
Model High power 5630 smd flexible led strip light 16.4ft(5m) TB10-60W56
(P/N: TB10-60W56)
Inquiry NowFeature:
High Power 5630 led, 50-55 lumen/led, 2100lumen/m;
Available color: warm white/pure white/cool white;
Dimmable;
Slight voltage drop, Good light uniform for all roll;
DC12V&DC24V operation;
could be used both indoor and outdoor;
Adhesive strong 3M tape, easy installation.
Technical Parameters:
| Parameter | Description | ||||
| Voltage (V) | DC12V/ DC24V | ||||
| Power (W) | 20 W/m, 100 W/roll | ||||
| Available Color | White | Red | Green | Blue | Yellow |
| Lumen/m | 2100 | 460-475nm | 510-515nm | 590-595nm | 620-630nm |
| LED Type | 5630 SMD LED | ||||
| LED Qty | 60 led/m, 300 led/roll | ||||
| Chip Brand | Epistar Chip from Taiwan | ||||
| Viewing angle | 120 degree | ||||
| Cuttable Unit | 50mm or 3 LED | ||||
| Dimension | 5000*10*02 mm | ||||
| IP Rate | IP20/IP65/ IP67/IP68 | ||||
| Working Temperature | -40°C~60°C | ||||
| Storage Temperature | -50°C~80°C | ||||
| PCB | Double Layer, Color-White | ||||
| Span life | 50,000h | ||||
| Certification | CE&ROHS | ||||
| Part No. | TB10-60W56 | TB10-60R56 | TB10-60G56 | TB10-60B56 | TB10-60Y56 |

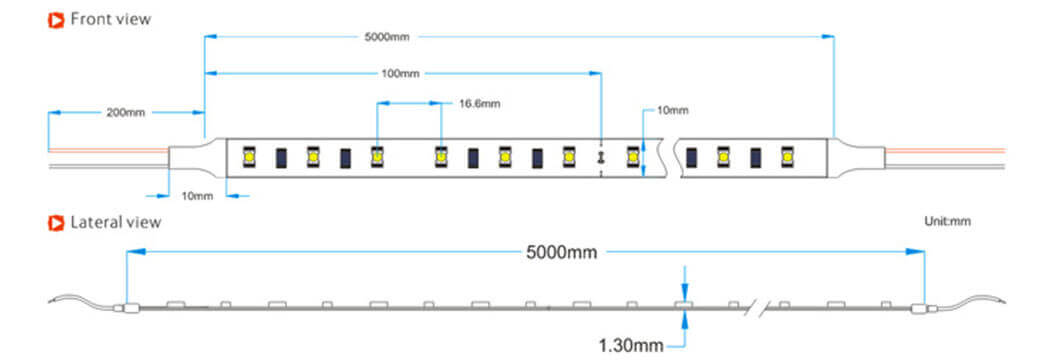

Dimension(mm):
Application:
LED Back lighting;
Cove lighting;
Accent LED lights;
Under cabinet lighting;
Display case LED lighting;
Decoration for the market, supermall.
